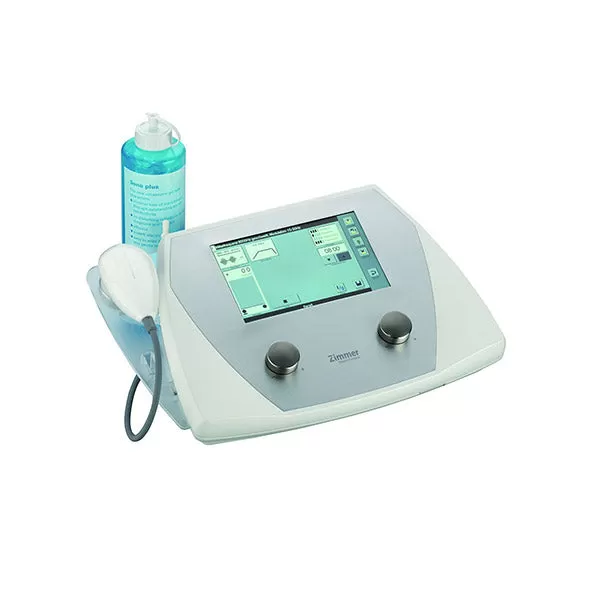

Zimmer Soleo Sono Ultrasound Therapy Device

Soleo Sono Ultrasound Therapy Device

Ever wondered how to treat with ultrasound at the correct depth – right where the problem is? Introducing the Soleo
Sono with patented SonoSwing.

With therapeutic ultrasound, the depth of penetration is dependent on the carrier frequency. Most ultrasounds on the
market have two such frequencies – one for surface treatment, and one for depth. Lower frequencies (0.8 to 1.5 MHz)
are optimally effective at greater depths, while higher frequencies (2.4 to 3.0 MHz) act more on the surface. You
can only select one or the other – with no variation in between. The Sono allows you to run both frequencies through
the same sound head in the same treatment, and you can select the percentage for each frequency.

You can “swing” through the treatment range from surface to depth to anywhere in between! That is SonoSwing. A
coupling light gives you a visual to make sure you have appropriate contact. Now all you need is a green light and
you are ready to go. The Soleo Sono with SonoSwing – the ultimate in ultrasound therapy!

Soleo Sono includes a high quality, multi-frequency ergonomic ultrasound applicator. It is equipped with a coupling
light and adjustable audible signal to indicate appropriate contact for optimum treatment. A green light indicates
correct contact. When coupling is not 100%, the screen will also indicate the percentage of transfer. Intuitive
programming makes starting treatment quick and easy. A simple touch gives the user access to any type of
stimulation. Each patient’s treatment parameters can be unique. Using active windows, it is now possible to modify
or adapt the parameters in a matter of seconds and store them on the SD memory card. Includes 5 cm soundhead.

---

---

Applicator with Coupling Light

A coupling light gives you a visual to make sure you have appropriate contact. Now all you need is a green light and
you are ready to go. The SoleoSono with SonoSwing – the ultimate in ultrasound therapy!

SoleoSono includes a high quality, multi-frequency ergonomic ultrasound applicator. It is equipped with a coupling
light and adjustable audible signal to indicate appropriate contact for optimum treatment. A green light indicates
correct contact.

When coupling is not 100%, the screen will also indicate the percentage of transfer.

---

Technical Data

Ultrasound Applicator

• 1 socket for one 5 cm² multi-frequency water tight head
• optional 1 cm² applicator available

Frequencies

• 0.8 MHz: deep effect
• 2.4 MHz: superficial effect

Maximum power emission 3 W / cm² for the 5 cm² applicator Programs 9 programs Modes Continuous and pulsed 20 Hz, 50
Hz, 100 Hz Pulse: 1/2, 1/3, 1/5, 1/10. Coupling Visual (2 color) and audio Settings All modifiable parameters are
accessible via the touch screen User Guide More than 50 therapeutic indications SD memory card 1GB SD memory card /
120 memory entries + favorites entries Accessory Support 2 supports supplied with all versions Dimensions Width 13
in / Height 5.1 in / Depth 8.7 in / Weight 4.4 lb Optional Accessories Move Carts, designed for Soleoline with a
special magnetic holder for improved cable management.

---
